0.5m wide Ribbon: flat heating ribbons on a mesh backingThe connection end of a Ribbon length, where the cold lead joins

0.5m electric underfloor heating Ribbon

The narrower Ribbon fills the strip a 1m length cannot, and suits halls, small rooms and the space between fittings.

  • 1.8mm thick heating element
  • 150W for each square metre
  • 13 whole lengths, 1.2m to 7m
  • 15-year warranty when fitted to the guide

£50.00

Standard UK delivery £9.99, free on orders of £150 or more. Delivery and returns

Not sure which lengths fit? Tell us your floor and room and get a list.

0.5m wide Ribbon: every stocked length
SizeHeated areaOutputPrice inc. VAT
0.5m × 1.2m0.6m²90W£50.00
0.5m × 1.5m0.75m²112W£61.50
0.5m × 2m1m²150W£65.00
0.5m × 2.5m1.25m²187W£76.00
0.5m × 3m1.5m²225W£85.00
0.5m × 3.5m1.75m²262W£99.00
0.5m × 4m2m²300W£110.00
0.5m × 4.5m2.25m²337W£124.00
0.5m × 5m2.5m²375W£138.00
0.5m × 5.5m2.75m²412W£152.00
0.5m × 6m3m²450W£166.00
0.5m × 6.5m3.25m²487W£171.00
0.5m × 7m3.5m²525W£184.00

The narrow 0.5m roll of the EkoBuild Ribbon. Ideal for hallways, bathrooms, around toilets and basins, and any tighter or awkward space. Fits within the layers specified for your chosen floor. EkoBuild provides a 15-year warranty on Ribbon heating from purchase, subject to our terms. AHT’s manufacturer cover is separate and subject to its certificate.

  • Goes under carpet, laminate, wood, vinyl and tile
  • 1.8mm mat; allow for the complete floor build-up
  • 150W/m² nominal mat output
  • Fixed lengths from 1.2m to 7m
  • Primary heat depends on room heat loss and fitted output
Close-up of parallel heating strips on blue mesh.
Ribbon heating demonstration sample. Choose the required width and length in the product options.

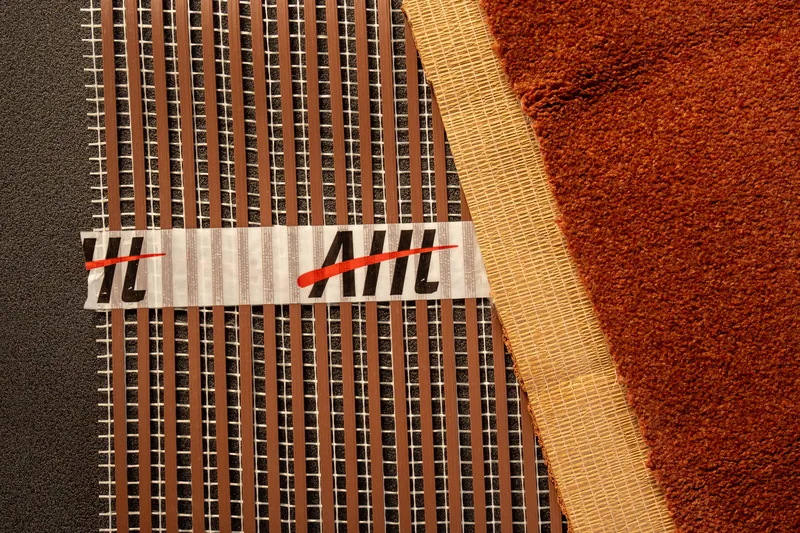

Carpet and backing sample beside a ribbon underfloor heating mat.
Carpet and backing sample beside a ribbon underfloor heating mat (demonstration sample).

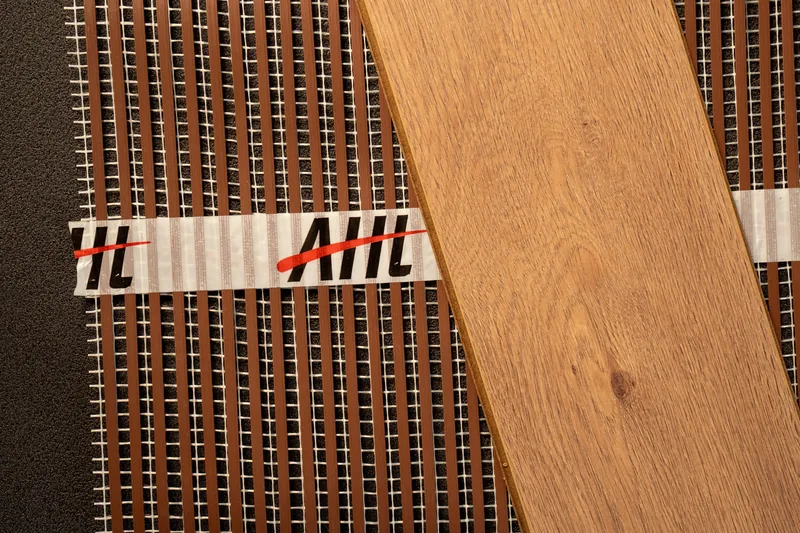

Light wood-effect flooring sample laid across a ribbon heating mat.
Light wood-effect flooring sample laid across a ribbon heating mat (demonstration sample).
EkoBuild 0.5m wide electric underfloor heating Ribbon roll, amorphous metal ribbon, 1.8mm thin
Catalogue illustrationSee the product options for the available width and lengths.

Demonstration samples show material details, not a complete installation specification. Check your floor build-up before ordering.

Why the 0.5m Ribbon

The narrow roll is for the bits a wide roll cannot reach. Hallways, small bathrooms, around toilets, basins and other fixtures. At 0.5m wide it fits tight runs and awkward shapes where the 1m roll is too big. The mat is 1.8mm thick and is fitted within the insulation or rigid base and floor layers specified for the selected finish, and is covered by EkoBuild’s 15-year warranty from purchase, subject to our terms. AHT’s manufacturer cover is separate.

AHT Ribbon is a 1.8mm electric heating mat with a nominal output of 150W/m² of fitted mat. Choose whole stocked mats that fit the available floor, and check the complete floor construction, controls and room heat loss. Combine 0.5m and 1m widths where whole stocked mats fit.

Specification

Width
0.5m
Output
150W/m²
Thickness
1.8mm
Lengths
1.2m to 7m
Floor types
Compatible products and specified build-ups
Floor construction
Depends on the selected finish
Warranty
15 years from purchase
Delivery
Free UK delivery £150+

0.5m Ribbon FAQs

Which floors can I use the 0.5m Ribbon under?

Choose a flooring product approved for underfloor heating and follow its temperature, thermal-resistance and installation limits. The Ribbon is 1.8mm thick, but insulation, underlay, rigid preparation and the floor finish add to the complete build-up.

Do I need screed under the Ribbon?

The Ribbon does not require a traditional deep screed. Its mat is 1.8mm thick, but the complete floor also includes the insulation or rigid base and any underlay, overlay, adhesive and finish specified for that assembly.

What length do I need?

Choose whole stocked lengths that fit your measured room and leave excluded furniture clear. The 0.5m Ribbon is stocked from 1.2m to 7m; never cut or shorten a heating element. Use the heating selector to review the whole-mat layout and current stock prices. It builds a product list for a straightforward room; other rooms go to Russ with your answers.

Work out the heating for your room

Answer a few plain questions about your floor and room. A straightforward room gets a product list you can add to your basket in one go. Anything more involved goes to Russ with your answers attached.
